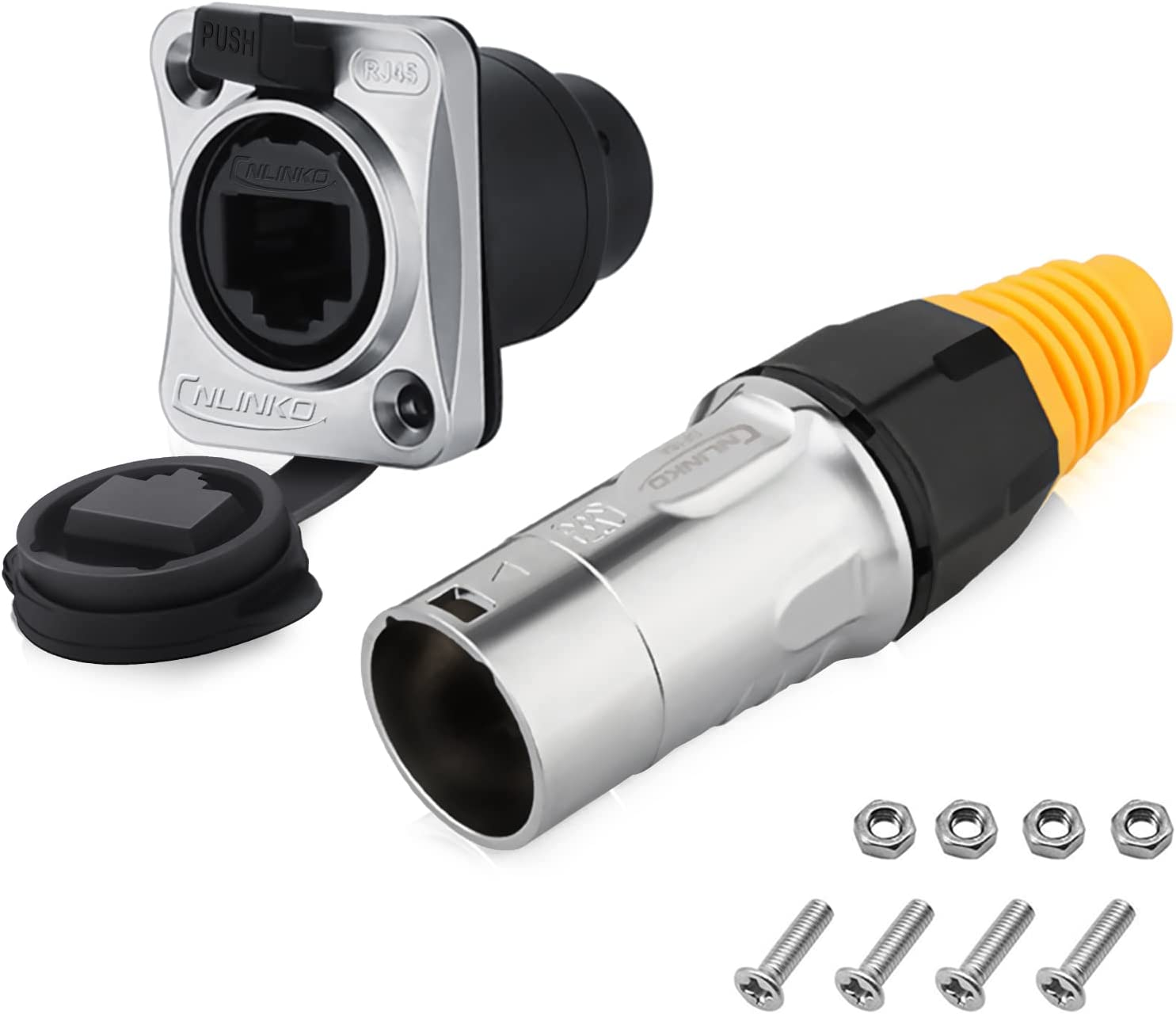

RJ45 Connector Specifications: The rj45 coupler general wire diameter: Φ5.5mm～Φ7mm. Cable specification: 0.15 --0.2mm²/26-24 AWG. Contact resistance <30mΩ. Mounting dimensions: 24mm. Waterproof Protection level: IP65. Package list: 1 plug + 1 dual-port socket.

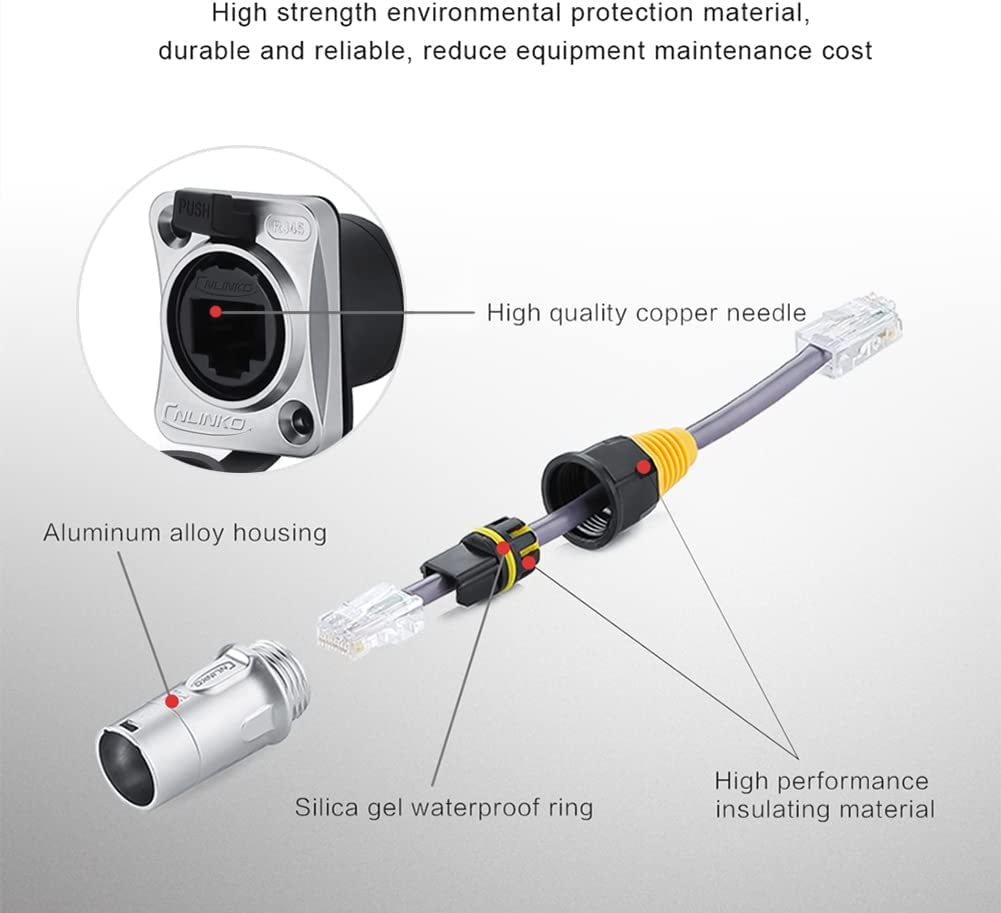

High-Quality Material: Our Ethernet connector high-performance engineering plastics with stability, compression, and anti-deformation. Use metal material, against high-frequency noise and electromagnetic interference. Using gold-plated contact with the superior performance of corrosion resistance and electrical conductivity effectively takes care of temperature rise. The transmission speed can reach 10GBIT/S.

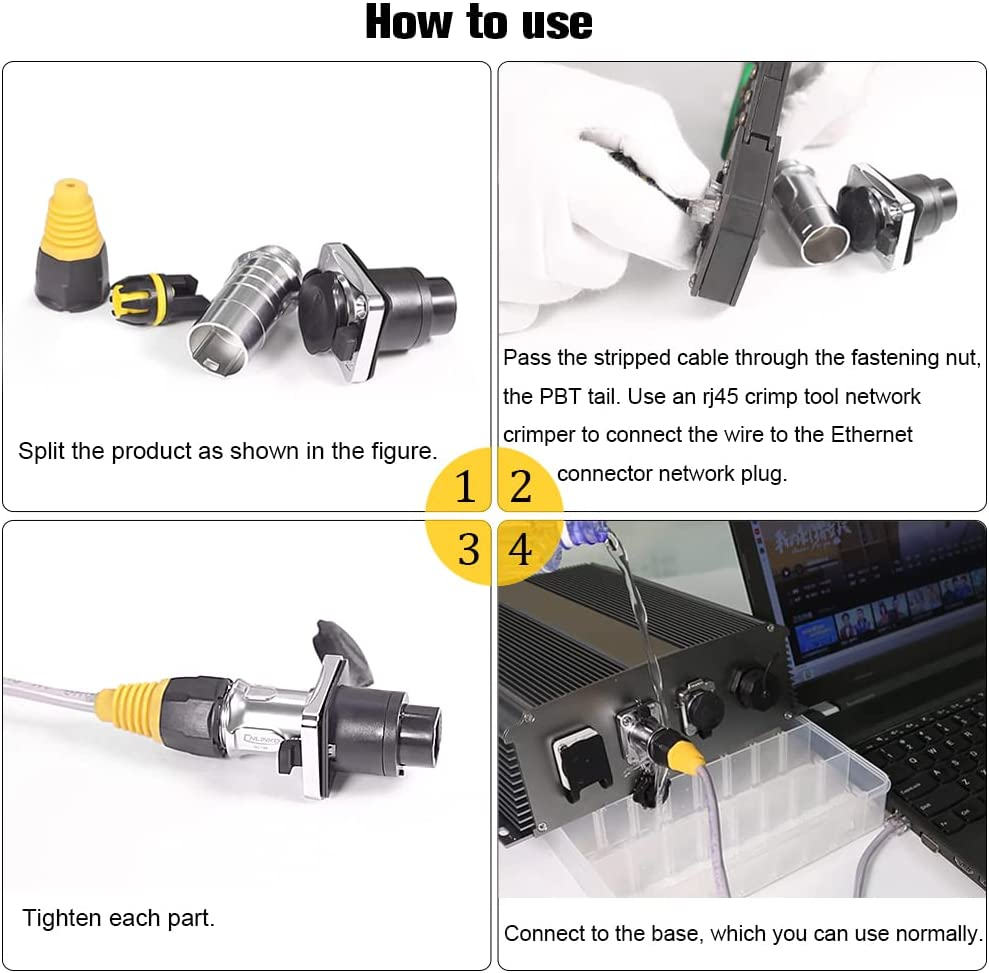

Easy to Install: Push-pull design, safety lock system. No soldering, no installation tools, just stop up standard crystal head directly for quick installation. Be compatible with the prevailing 8P8C RJ45 plug, Be equipped with a waterproof connector, which protects the connector from external harm. High-frequency noise immunity and electromagnetic interference protection. Provides feed-through Cat3e/5e Ethernet connectivity for data and PoE in industrial environments.
Signal Waterproof Connectors: The cable protector has a solid die-cast housing and a unique ferrule clamp. Waterproof design, the product reaches IP65 protection level when assembled. Adapt to various harsh environments, acid, alkali, oxidation, etc. Ensure the stability of current. High quality ensures that your equipment works well without being influenced.
Wide Applications: Compliance with D level, CAT 3e or CAT5e standard of EIA568B and ISO/IEC11801, used to the home network, industrial network, stage credit connection, outdoor IP camera, ADSL LAN cable, LED equipment, underground engineering, communication field, etc.
